RGB Hot Swap ANSI Mechanical Keyboard DIY Kit W7173
Sale price
$12.50
Regular price $50.69
Skip to product information

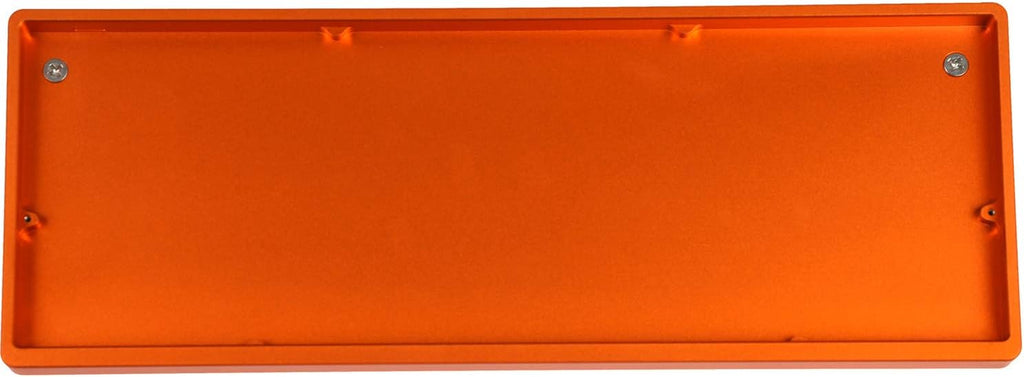

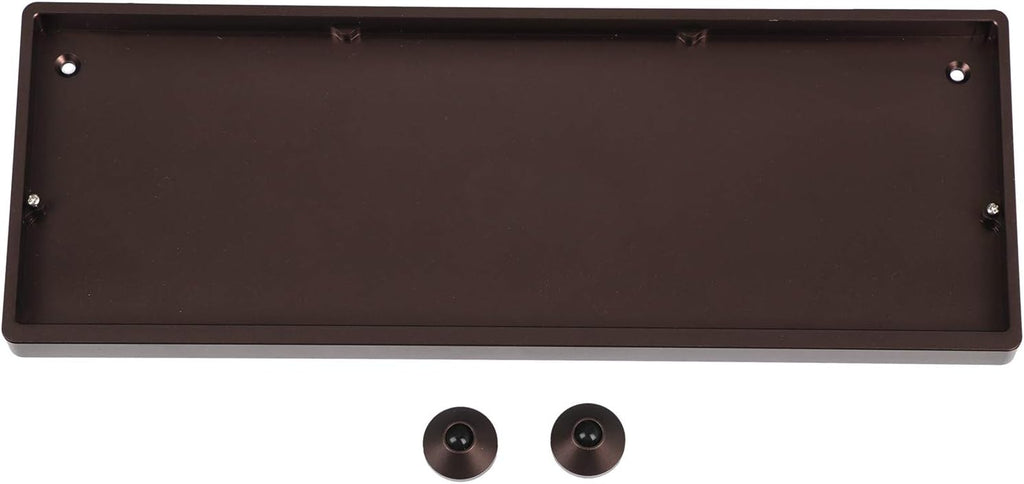

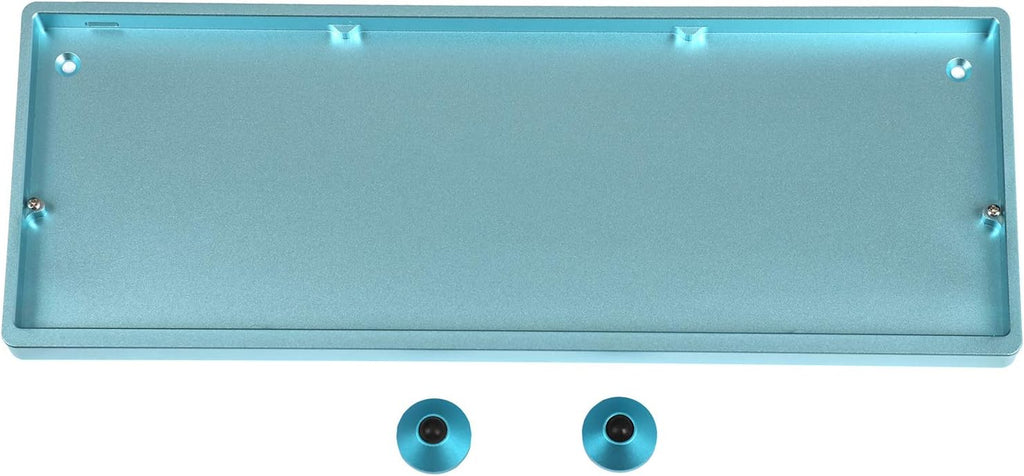

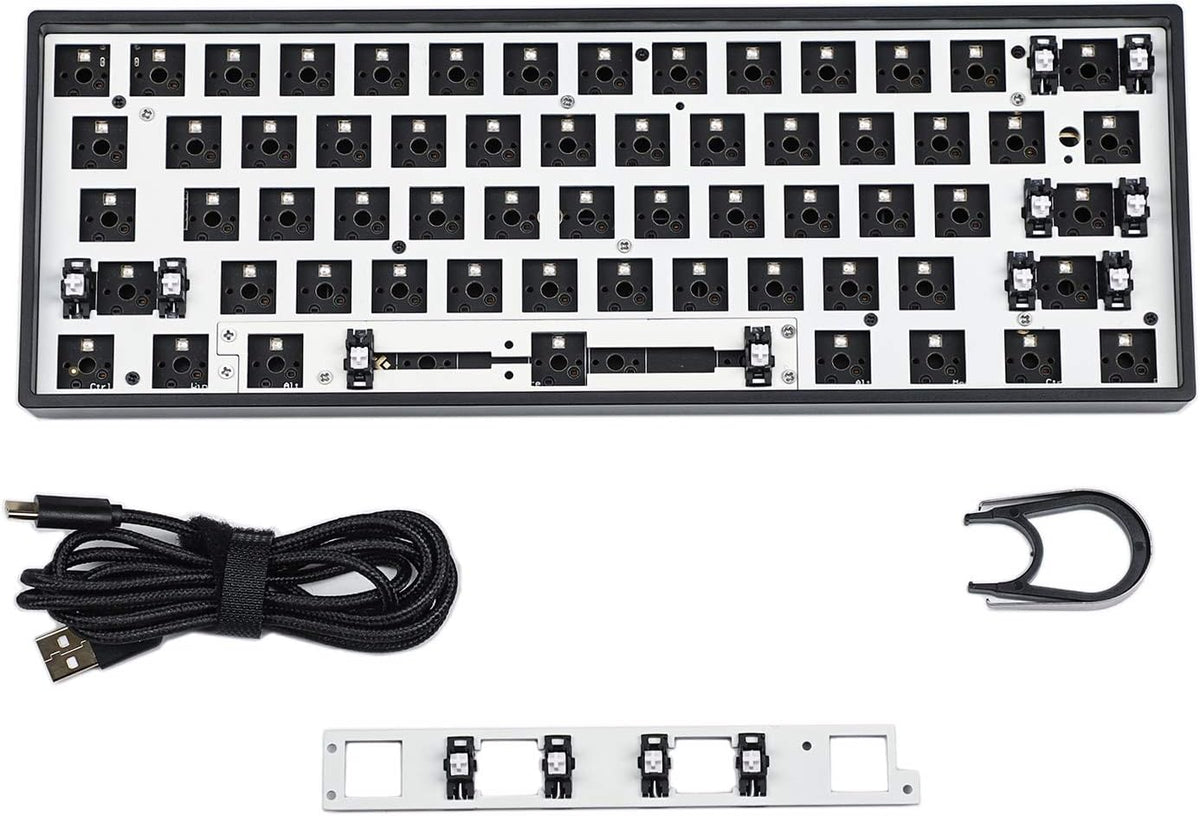

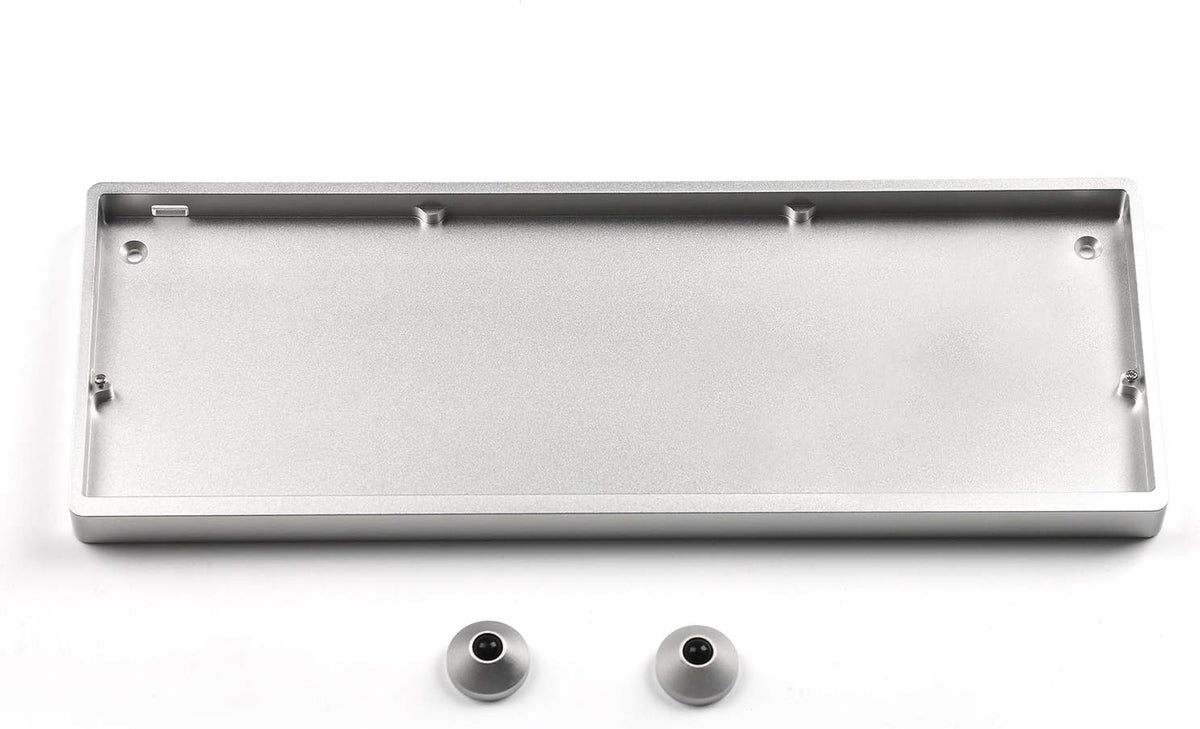

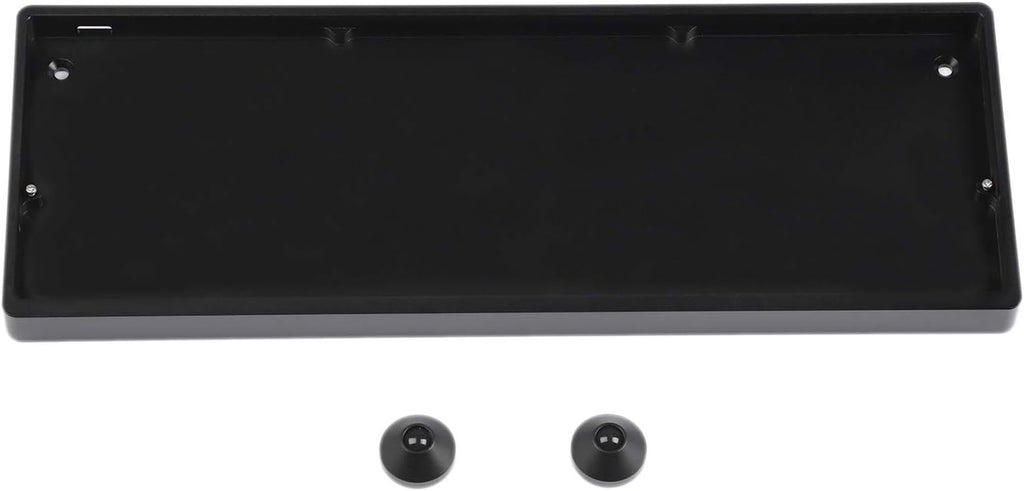

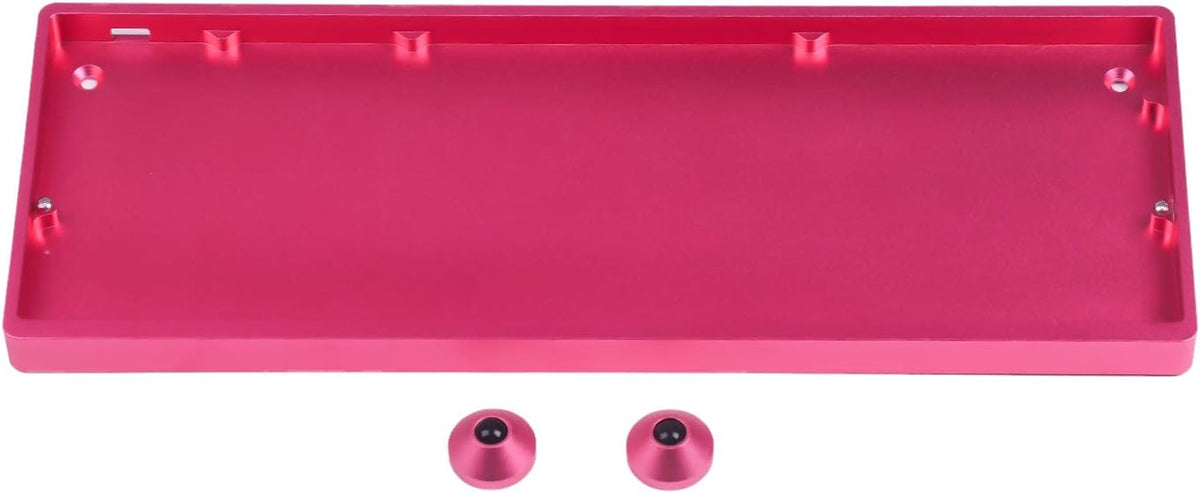

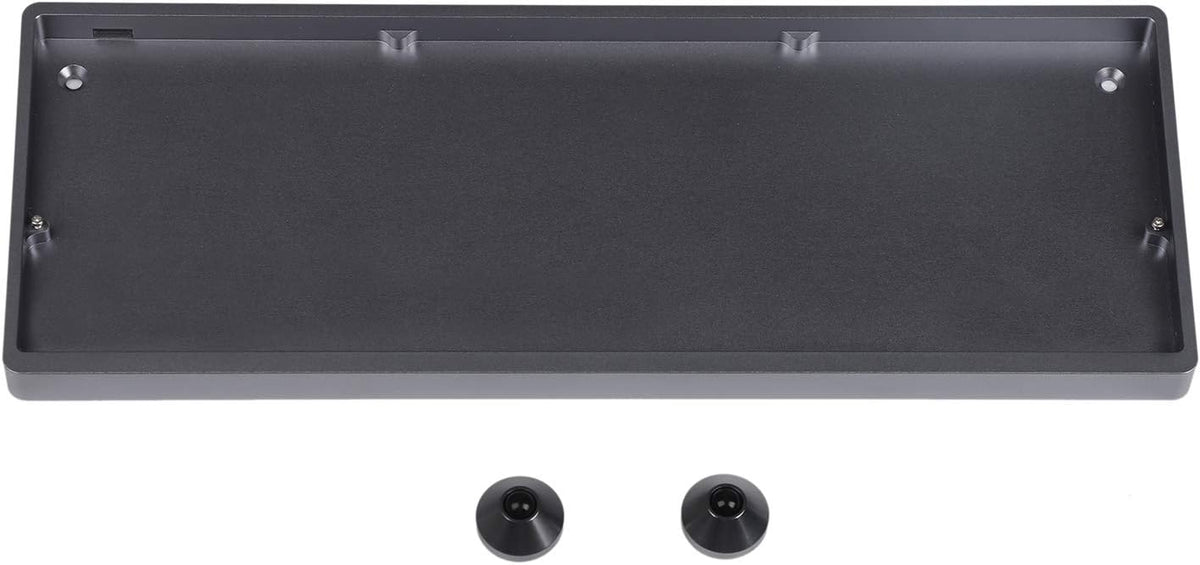

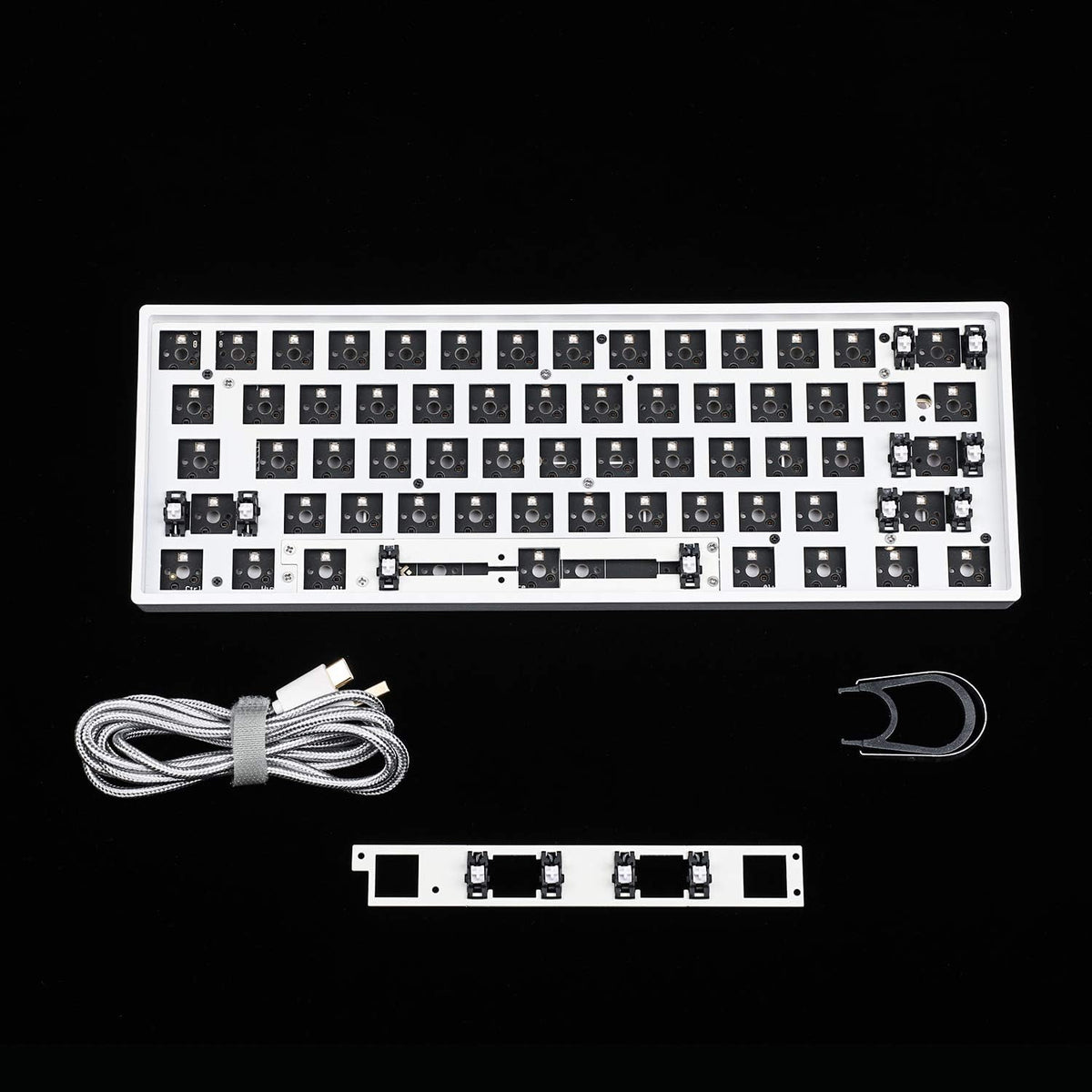

Package Included:Plastic Case + Feet + Stabilizers + Hotswap Type C PCB + Plate + Cable + Removal Tool + Space Module.
Pls note:GK61x is wired kit.The PCB is fully programmable with GK software,the Fn key is the last key at the bottom and can't change place.
This kit support 6.25u space and split double space.This plate is screwed to case directly.So if you want to replace normal GH60 case,you need to replace a non -replacable GH60 size plate is ok.
PCB has RGB presoldered,it's under per switch.This kit need to use Cherry MX switches and clones,optical switches is not supported
There is no switches in the kit,you can order Cherry Gateron Kailh SMD Box switches etc yourself.Just put in switches in PCB is ok,no need soldering again.3 pin 5 pin both are ok.If little keys not working,check the switch pin whether it's bent at first.Especially Kailh switches
If you want to pull PCB off the case,please remove the plate off totally at first and then pull the PCB out.Or it may break the PCB USB port.
